DM-S150 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Nominal Voltage: 75,6 V |
|
Nominal Speed: 1700 rpm |
|
Nominal Torque: 19 Nm |
|
Continuous Power: 3500W |
|

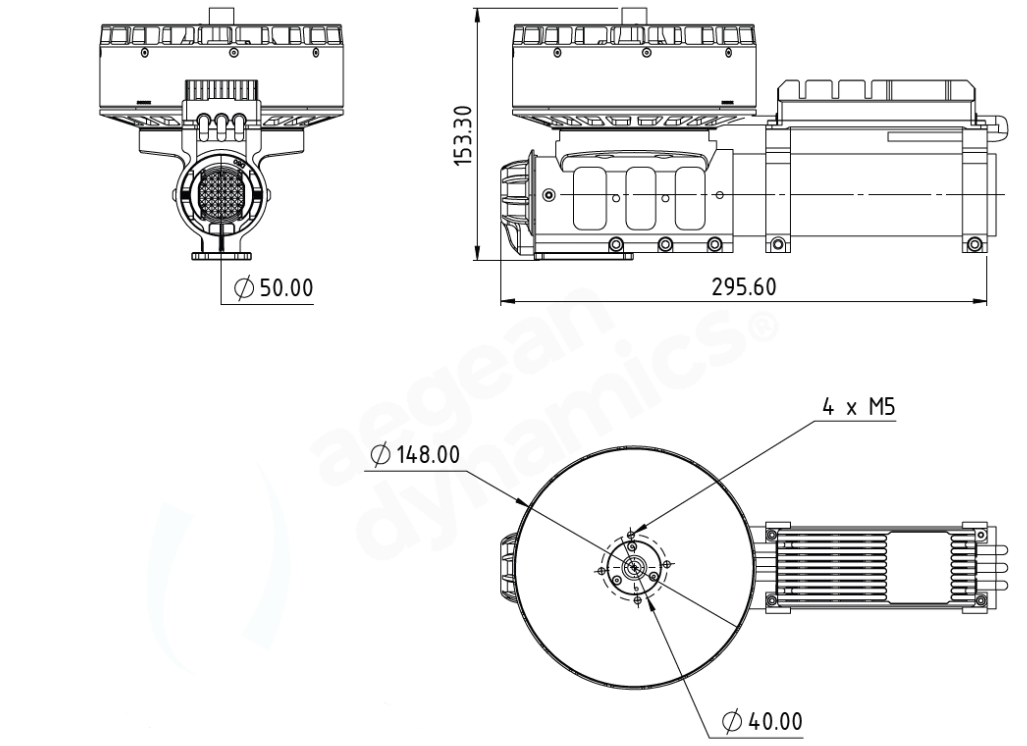

Diameter: 148 mm |
|
Lenght: 295,6 mm |
DM-S150 Drone Motor
DM-S150 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Nominal Voltage: 75,6 V |
|
Nominal Speed: 1700 rpm |
|
Nominal Torque: 19 Nm |
|
Continuous Power: 3500W |
|
Diameter: 148 mm |
|
Lenght: 295,6 mm |
DM-S150 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Nominal Voltage: 75,6 V |
|
Nominal Speed: 1700 rpm |
|
Nominal Torque: 19 Nm |
|
Continuous Power: 3500W |
|
Diameter: 148 mm |
|
Lenght: 295,6 mm |
DM-S150 Drone Motor
| Basic Motor Parameters | ||
|---|---|---|
| Throttle | % | 60 |
| Max. Thrust | kg | 60 |
| Recommended Takeoff Weight | kg | 26–28 |
| Torque | Nm | 21 |
| KV Rating | rpm/V | 45 |
| BUS Voltage | S | 18 S |
| Operating Current | A | 55 |
| Nominal Speed | rpm | 1700 |
| Propeller Force Efficiency | g/W | 8 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 42 | |
| Terminal Resistance Phase to Phase | mΩ | 18 |
| Terminal Inductance Phase to Phase | mH | 35 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |
| Physical Parameters | ||
| Outer Diameter | mm | 150 |
| Shaft Diameter | mm | 15 |
| Weight | gr | 3280 |
| Motor Connection | ||
| U | RED | |
| V | BLACK | |
| W | WHITE | |
| Sensor Connection | ||
| N/A | N/A | |
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
| Propeller Info (Recommended) | ||
| Diameter | 56" | |
| Pitch | 20" | |
