Test Infrastructure

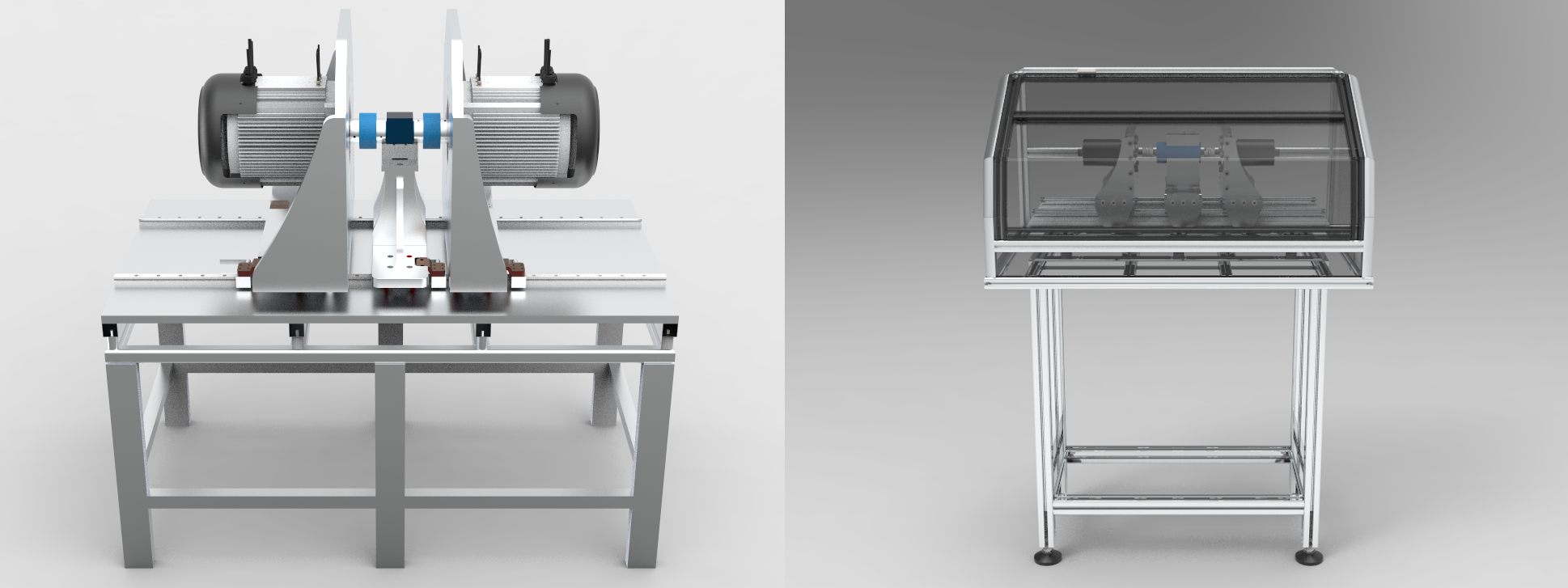

Motor Test Bench Specifications

2 Nm Motor Test Bench
Feature	Value
Max. Speed (rpm)	20,000
Max. Torque (Nm)	2
Max. Voltage (V)	400
Max. Current (A)	25

100 Nm Motor Test Bench
Feature	Value
Max. Speed (rpm)	10,000
Max. Torque (Nm)	100
Max. Voltage (V)	150
Max. Current (A)	50

500 Nm Motor Test Bench
Feature	Value
Max. Speed (rpm)	6,000
Max. Torque (Nm)	500
Max. Voltage (V)	96
Max. Current (A)	150

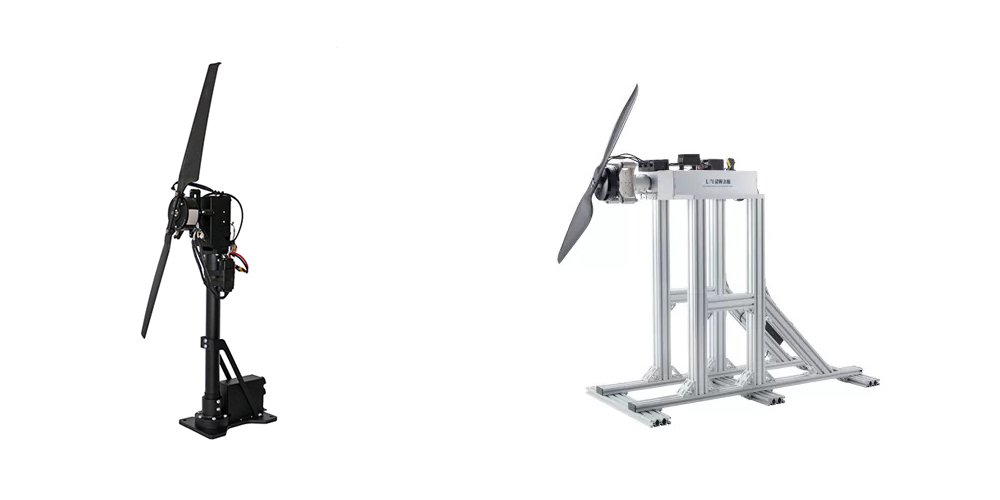

Drone Thrust Bench Specifications

0–15 kg Thrust Test Bench
Feature	Value
Propulsion Range (kg)	0 – 15
Max. Propeller Diameter (inch)	30 inch
Voltage Range (V)	5 – 60 V
Current Range (A)	0 – 75 A
Max. Thrust (kg-f)	15

5–70 kg Thrust Test Bench
Feature	Value
Propulsion Range (kg)	5 – 70
Max. Propeller Diameter (inch)	60
Voltage Range (V)	5 – 110
Current Range (A)	0 – 300
Max. Thrust (kg-f)	70
