DM-G70 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Nominal Voltage: 46 V |
|
Nominal Speed: 4400 rpm |
|
Nominal Torque: 1,45 Nm |
|
Continuous Power: 700 W |
|
Diameter: 70 mm |
|
Lenght: 133,5 mm |
DM-G70 Drone Motor
DM-G70 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Nominal Voltage: 46 V |
|
Nominal Speed: 4400 rpm |
|
Nominal Torque: 1,45 Nm |
|
Continuous Power: 700 W |
|
Diameter: 70 mm |
|
Lenght: 133,5 mm |
DM-G70 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Nominal Voltage: 46 V |
|
Nominal Speed: 4400 rpm |
|
Nominal Torque: 1,45 Nm |
|
Continuous Power: 700 W |
|
Diameter: 70 mm |
|
Lenght: 133,5 mm |
DM-G70 Drone Motor
| Basic Motor Parameters | |
|---|---|
| Throttle | % 60 |
| Max. Thrust | 11.8 kg |
| Recommended Takeoff Weight | 5.8 kg |
| Torque | 1.45 Nm |
| KV Rating | 150 rpm/V |
| Bus Voltage | 12–14 S Lipo |
| Operating Current | 20 A |
| Nominal Speed | 4400 rpm |
| Propeller Force Efficiency | 8.7 g/W |
| Electrical Parameters | |
| Number of Phases | 3 |
| Number of Poles | 28 |
| Terminal Resistance Phase to Phase | 35 mΩ |
| Terminal Inductance Phase to Phase | 40 mH |
| Thermal Data | |
| Ambient Temperature | -40 to +85 °C |
| Max. Winding Temperature | +155 °C |

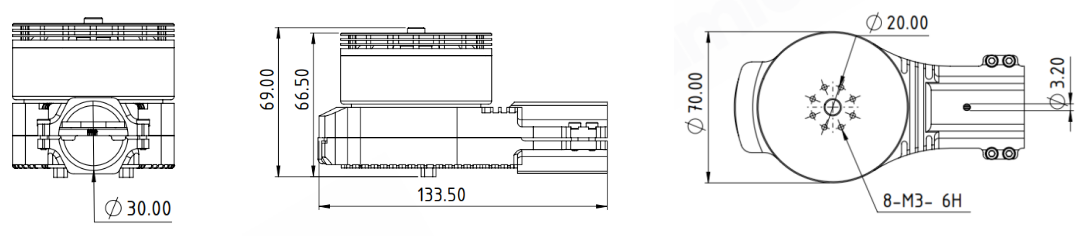

| Physical Parameters | |
| Outer Diameter | 70 mm |
| Shaft Diameter | 8 mm |
| Weight | 0.760 gr |
| Motor Connection | |
| U | RED |
| V | BLACK |
| W | WHITE |
| Sensor Connection | |
| Sensor | N/A |
| Connector Articles | |
| Power | N/A |
| Signal | N/A |
| Propeller Info (Recommended) | |
| Diameter | 24” |
| Pitch | 7.2” |
