DM-G35 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Bus Voltage: 6S |
|
Nominal Speed: 9500 rpm |
|
Nominal Torque: 0.37 Nm |
|
Nominal Power: 370 W |
|
Diameter: 37 mm |
|
Lenght: 48 mm |
DM-G35 Drone Motor
DM-G35 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Bus Voltage: 6S |
|
Nominal Speed: 9500 rpm |
|
Nominal Torque: 0.37 Nm |
|
Nominal Power: 370 W |
|
Diameter: 37 mm |
|
Lenght: 48 mm |
DM-G35 Drone Motor
Basic Information:
Our Drone Motor segment delivers high power density at both low and nominal speed conditions. With their compact design and high efficiency, our high-performance brushless motors are widely used in defense, aerospace, unmanned aerial vehicles (UAVs), agricultural, and industrial drone applications.
|
PARAMETERS |
|
Bus Voltage: 6S |
|
Nominal Speed: 9500 rpm |
|
Nominal Torque: 0.37 Nm |
|
Nominal Power: 370 W |
|
Diameter: 37 mm |
|
Lenght: 48 mm |
DM-G35 Drone Motor
| Basic Motor Parameters | |
|---|---|
| Throttle | % 60 |
| Max. Thrust | 5.1 kg |
| Recommended Takeoff Weight | 2–2.5 kg |
| Torque | 0.37 Nm |
| KV Rating | 900 rpm/V |
| Bus Voltage | 24V 6S |
| Max. Efficiency | 90% |
| Operating Current | 23 A |
| Nominal Speed | 9500 rpm |
| Propeller Force Efficiency | 4.3 g/W |
| Electrical Parameters | |
| Number of Phases | 3 |
| Number of Poles | 14 |
| Terminal Resistance (±10%) | 45 mΩ |
| Terminal Inductance (±30%) | 30 mH |
| Thermal Data | |
| Ambient Temperature | -40 to +85 °C |
| Max. Winding Temperature | +155 °C |

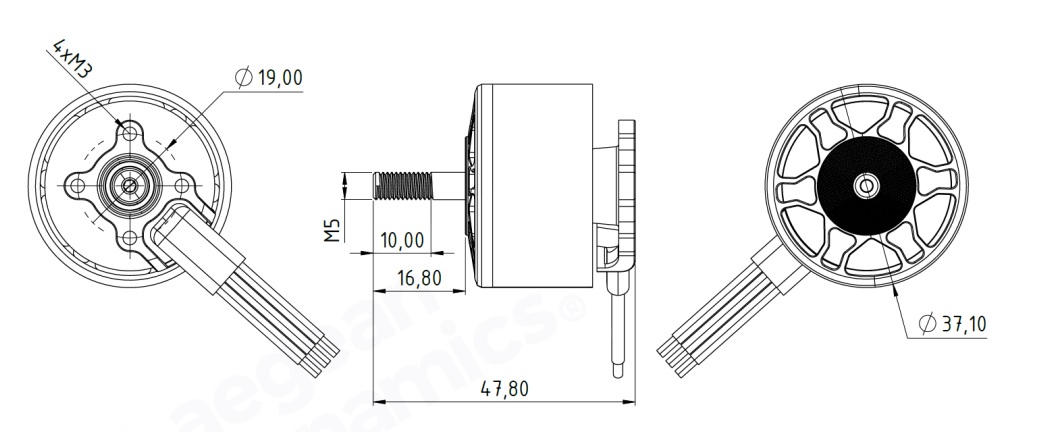

| Physical Parameters | |
| Outer Diameter | 37.1 mm |
| Shaft Diameter | M5 |
| Max. Length | 47.8 mm |
| Weight | 121 gr |
| Motor Connection | |
| U | Black |
| V | Black |
| W | Black |
| Sensor Connection | |
| Sensor | N/A |
| Connector Articles | |
| Power | N/A |
| Signal | N/A |
| Propeller Info (Recommended) | |
| Diameter | 10” |
| Pitch | 5” |
