920W 270V Connector Servo Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 270 V |
|
Nominal Speed: 3600 rpm |
|
Nominal Torque: 2.3 Nm |
|
Continuous Power: 920W |
|
Diameter: 70 mm |
|
Lenght: 186,5 mm |
920W 270V Connector Servo Motor
920W 270V Connector Servo Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 270 V |
|
Nominal Speed: 3600 rpm |
|
Nominal Torque: 2.3 Nm |
|
Continuous Power: 920W |
|
Diameter: 70 mm |
|
Lenght: 186,5 mm |
920W 270V Connector Servo Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 270 V |
|
Nominal Speed: 3600 rpm |
|
Nominal Torque: 2.3 Nm |
|
Continuous Power: 920W |
|
Diameter: 70 mm |
|
Lenght: 186,5 mm |
920W 270V Connector Servo Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 920 |
| Rated Speed | rpm | 3600 |
| Rated Torque | Nm | 2.3 |
| Rated Current | A | 4 |
| Rated Voltage | V | 270 |
| No-Load Speed | rpm | 4250 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 10 | |
| Torque Constant (KT) | Nm/A | 0.732 |
| Back EMF Constant (KE) | Vs/rad | 0.732 |
| Terminal Resistance Phase to Phase (±10%) | mΩ | 1650 |
| Terminal Inductance Phase to Phase (±30%) | mH | 2.9 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

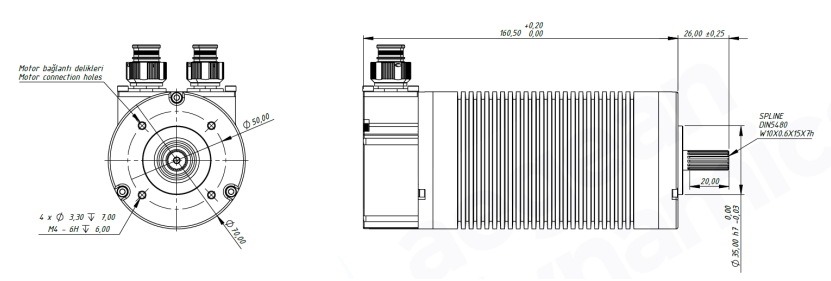

| Physical Parameters | ||
| Outer Diameter | mm | 70 |
| Shaft Diameter | mm | 10 |
| Max. Length | mm | 186.5 |
| Weight | gr | ~2000 |
| Motor Connection | ||
| Pin 1 | N/A | |
| Pin 2 | U | |
| Pin 3 | V | |
| Pin 4 | W | |
| Sensor Connection | ||
| Pin 1 | GND | |
| Pin 2 | +VDC | |
| Pin 3 | Z′ | |
| Pin 4 | Z | |
| Pin 5 | B | |
| Pin 6 | B′ | |
| Pin 7 | A′ | |
| Pin 8 | A | |
| Pin 9 | U | |
| Pin 10 | V | |
| Pin 11 | W | |
| Pin 12 | NTC | |
| Pin 13 | NTC | |
| Connector Articles | ||
| Power | 2M801-009-07NF9-4PB | |
| Signal | 2M801-009-07NF8-13PA | |
