50 W Frameless Flat BLDC Motor
Basic Information:
Our Flat BLDC Motor solutions combine high torque density and space saving especially for robotic applications.
|
PARAMETERS |
|
Nominal Voltage: 28 V |
|
Nominal Speed: 2200 rpm |
|
Nominal Torque: 0,22 Nm |
|
Continuous Power: 50 W |
|
Diameter: 45 mm |
|
Lenght: 30 mm |
50 W Frameless Flat BLDC Motor
50 W Frameless Flat BLDC Motor
Basic Information:
Our Flat BLDC Motor solutions combine high torque density and space saving especially for robotic applications.
|
PARAMETERS |
|
Nominal Voltage: 28 V |
|
Nominal Speed: 2200 rpm |
|
Nominal Torque: 0,22 Nm |
|
Continuous Power: 50 W |
|
Diameter: 45 mm |
|
Lenght: 30 mm |
50 W Frameless Flat BLDC Motor
Basic Information:
Our Flat BLDC Motor solutions combine high torque density and space saving especially for robotic applications.
|
PARAMETERS |
|
Nominal Voltage: 28 V |
|
Nominal Speed: 2200 rpm |
|
Nominal Torque: 0,22 Nm |
|
Continuous Power: 50 W |
|
Diameter: 45 mm |
|
Lenght: 30 mm |
50 W Frameless Flat BLDC Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 50 |
| Rated Speed | rpm | 2200 |
| Rated Torque | Nm | 0.22 |
| Rated Current | A | 2.5 |
| Rated Voltage | V | 28 |
| No-Load Speed | rpm | 2600 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 14 | |
| Torque Constant (KT) | Nm/A | 0.1 |
| Back EMF Constant (KE) | Vs/rad | 0.1 |
| Terminal Resistance Phase to Phase (±%10) | mΩ | 1000 |
| Terminal Inductance Phase to Phase (±%30) | mH | 0.75 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

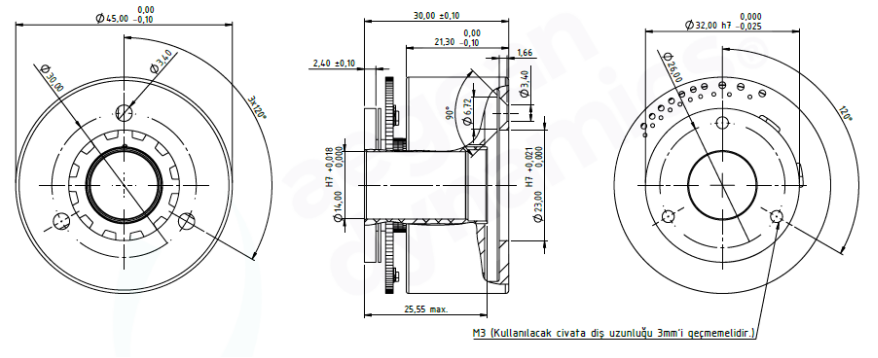

| Physical Parameters | ||
| Outer Diameter | mm | 45 |
| Shaft Diameter | mm | N/A |
| Max. Length | mm | 30 |
| Weight | gr | ~500 |
| Motor Connection | ||
| U | RED | |
| V | WHITE | |
| W | BLACK | |
| Sensor Connection | ||
| NTC | PURPLE | |
| GND | GREEN | |
| GND | GREEN | |
| VCC | BLUE | |
| H1 | BROWN | |
| H2 | YELLOW | |
| H3 | ORANGE | |
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
