49 W Frameless BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 12 V |
|
Nominal Speed: 7300 rpm |
|
Nominal Torque: 0,065 Nm |
|
Continuous Power: 49W |
|
Diameter: 25 mm |
|
Lenght: 17,5 mm |
49 W Frameless BLDC Motor
49 W Frameless BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 12 V |
|
Nominal Speed: 7300 rpm |
|
Nominal Torque: 0,065 Nm |
|
Continuous Power: 49W |
|
Diameter: 25 mm |
|
Lenght: 17,5 mm |
49 W Frameless BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 12 V |
|
Nominal Speed: 7300 rpm |
|
Nominal Torque: 0,065 Nm |
|
Continuous Power: 49W |
|
Diameter: 25 mm |
|
Lenght: 17,5 mm |
49 W Frameless BLDC Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 49 |
| Rated Speed | rpm | 7300 |
| Rated Torque | Nm | 0.065 |
| Rated Current | A | 5.5 |
| Rated Voltage | V | 12 |
| No-Load Speed | rpm | 10500 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 14 | |
| Torque Constant (KT) | Nm/A | 0.0118 |
| Back EMF Constant (KE) | Vs/rad | 0.0109 |
| Terminal Resistance Phase to Phase (±%10) | mΩ | 375 |
| Terminal Inductance Phase to Phase (±%30) | mH | 85 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

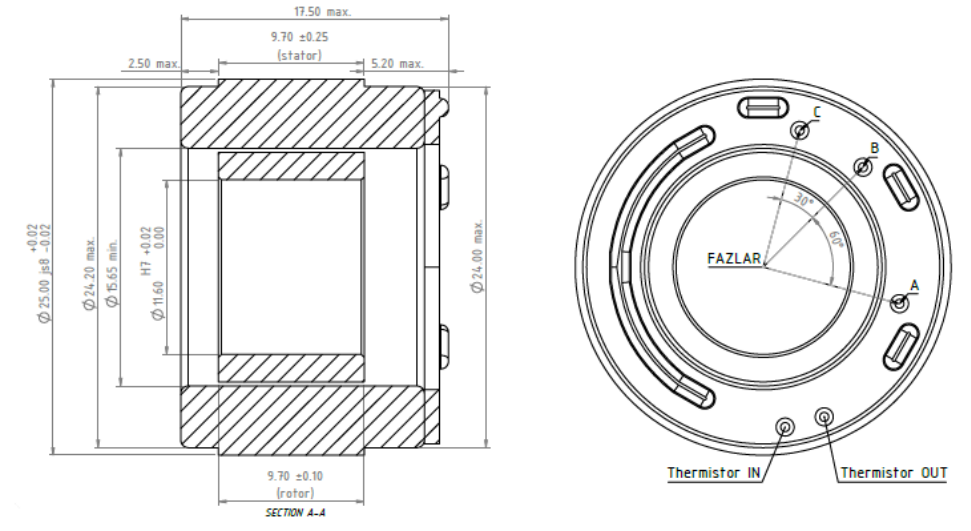

| Physical Parameters | ||
| Outer Diameter | mm | 25 |
| Shaft Diameter | mm | N/A |
| Max. Length | mm | 17.5 |
| Weight | gr | 30 |
| Motor Connection | ||
| U | A | |
| V | B | |
| W | C | |
| Sensor Connection | ||
| N/A | N/A | |
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
