40 W Gearbox Integrated BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 24 V |
|
Nominal Speed: 7500 rpm |
|
Nominal Torque: 0,050 Nm |
|
Continuous Power: 40W |
|
Diameter: 30 mm |
|
Lenght: 45 mm |
40W Gearbox Integrated BLDC Motor
40 W Gearbox Integrated BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 24 V |
|
Nominal Speed: 7500 rpm |
|
Nominal Torque: 0,050 Nm |
|
Continuous Power: 40W |
|
Diameter: 30 mm |
|
Lenght: 45 mm |
40 W Gearbox Integrated BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 24 V |
|
Nominal Speed: 7500 rpm |
|
Nominal Torque: 0,050 Nm |
|
Continuous Power: 40W |
|
Diameter: 30 mm |
|
Lenght: 45 mm |
40 W Gearbox Integrated BLDC Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 40 |
| Rated Speed | rpm | 7500 |
| Rated Torque | Nm | 0.05 |
| Rated Current | A | 2 |
| Rated Voltage | V | 24 |
| No-Load Speed | rpm | 9000 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 8 | |
| Torque Constant (KT) | Nm/A | 0.024 |
| Back EMF Constant (KE) | Vs/rad | 0.025 |
| Terminal Resistance Phase to Phase (±10%) | mΩ | 1200 |
| Terminal Inductance Phase to Phase (±30%) | mH | 0.26 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

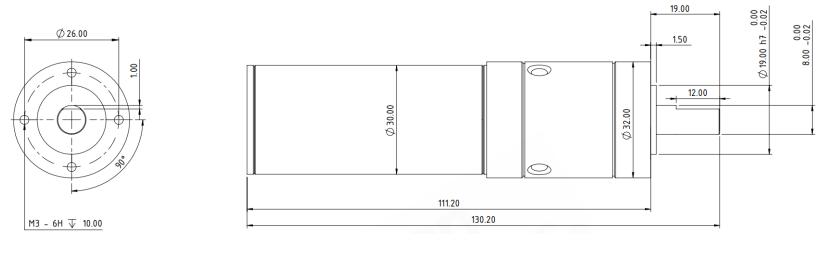

| Physical Parameters | ||
| Outer Diameter | mm | 32 |
| Shaft Diameter | mm | 8 |
| Max. Length | mm | 130.2 |
| Weight | gr | ~231 |
| Motor Connection | ||
| U | RED CABLE | |
| V | WHITE CABLE | |
| W | BLACK CABLE | |
| Sensor Connection | ||
| BLUE | VDC+ | |
| GREEN | GND | |
| BROWN | HALL A | |
| ORANGE | HALL B | |
| YELLOW | HALL C | |
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
