400 W AC Servo Motor
Basic Information:
Our AC Servo Motor segment delivers precise control, high dynamic response, and stable torque performance across a wide range of motion applications. With a compact design and excellent positioning accuracy, these motors are ideal for industrial automation, CNC machinery, packaging systems, and robotics. Integrated encoder options and compatibility with advanced servo drives make them suitable for high-performance closed-loop control systems.
|
PARAMETERS |
|
Nominal Voltage: 220 V |
|
Nominal Speed: 3000 rpm |
|
Nominal Torque: 1.27 Nm |
|
Continuous Power: 400 W |
|
Diameter: 60x60 mm |
|
Lenght: 163 mm |
400 W AC Servo Motor
400 W AC Servo Motor
Basic Information:
Our AC Servo Motor segment delivers precise control, high dynamic response, and stable torque performance across a wide range of motion applications. With a compact design and excellent positioning accuracy, these motors are ideal for industrial automation, CNC machinery, packaging systems, and robotics. Integrated encoder options and compatibility with advanced servo drives make them suitable for high-performance closed-loop control systems.
|
PARAMETERS |
|
Nominal Voltage: 220 V |
|
Nominal Speed: 3000 rpm |
|
Nominal Torque: 1.27 Nm |
|
Continuous Power: 400 W |
|
Diameter: 60x60 mm |
|
Lenght: 163 mm |
400 W AC Servo Motor
Basic Information:
Our AC Servo Motor segment delivers precise control, high dynamic response, and stable torque performance across a wide range of motion applications. With a compact design and excellent positioning accuracy, these motors are ideal for industrial automation, CNC machinery, packaging systems, and robotics. Integrated encoder options and compatibility with advanced servo drives make them suitable for high-performance closed-loop control systems.
|
PARAMETERS |
|
Nominal Voltage: 220 V |
|
Nominal Speed: 3000 rpm |
|
Nominal Torque: 1.27 Nm |
|
Continuous Power: 400 W |
|
Diameter: 60x60 mm |
|
Lenght: 163 mm |
400 W AC Servo Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 400 |
| Rated Speed | rpm | 3000 |
| Rated Torque | Nm | 1.27 |
| Rated Current | A | 2.5 |
| Rated Voltage | V | 220 |
| No-Load Speed | rpm | 3000 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 10 | |
| Torque Constant (KT) | Nm/A | 0.809 |
| Back EMF Constant (KE) | Vs/rad | 0.66 |
| Terminal Resistance Phase to Phase (±%10) | mΩ | 2750 |
| Terminal Inductance Phase to Phase (±%30) | mH | 30 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

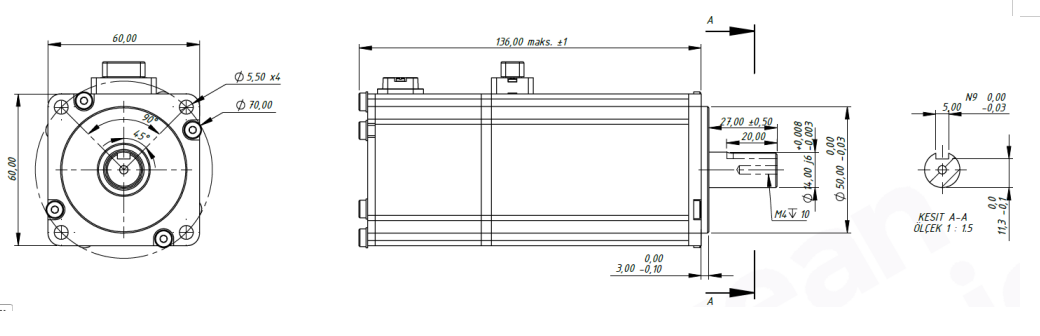

| Physical Parameters | ||
| Outer Diameter | mm | 60x60 (Square) |
| Shaft Diameter | mm | 14 |
| Max. Length | mm | 136 |
| Weight | gr | ~1207 |
| Motor Connection | ||
| U | GREY | |
| V | BROWN | |
| W | BLACK | |
| Sensor Connection | ||
| Vcc (+5VDC) | RED | |
| GND | BLACK | |
| GND | BROWN/BLACK | |
| VB | BROWN | |
| SD | BLUE | |
| SD | BLUE/BLACK | |
| BODY GND | GREY | |
| SCREEN | - | |
| CHASSIS | - | |
| Connector Articles | ||
| Power | CONNECTOR SERVO SOCKET 4P | |
| Signal | CONNECTOR SERVO SOCKET 9P | |
