25 kW 6000 rpm PMSM Motor
Basic Information:
The PMSM Traction Motors are powerful, easy to configure and ideal for small electric cars, marine boats, electric forklifts and electric heavy equipment which no emissions. Thus, that makes the drive much more environmentally friendly and silent.
|
PARAMETERS |
|
Nominal Voltage: 150 V |
|
Nominal Speed: 6000 rpm |
|
Nominal Torque: 40 Nm |
|
Continuous Power: 25000 W |
|
Diameter: 315 mm |
|
Lenght: 376 mm |
25 kW 6000 rpm PMSM Motor
25 kW 6000 rpm PMSM Motor
Basic Information:
The PMSM Traction Motors are powerful, easy to configure and ideal for small electric cars, marine boats, electric forklifts and electric heavy equipment which no emissions. Thus, that makes the drive much more environmentally friendly and silent.
|
PARAMETERS |
|
Nominal Voltage: 150 V |
|
Nominal Speed: 6000 rpm |
|
Nominal Torque: 40 Nm |
|
Continuous Power: 25000 W |
|
Diameter: 315 mm |
|
Lenght: 376 mm |
25 kW 6000 rpm PMSM Motor
Basic Information:
The PMSM Traction Motors are powerful, easy to configure and ideal for small electric cars, marine boats, electric forklifts and electric heavy equipment which no emissions. Thus, that makes the drive much more environmentally friendly and silent.
|
PARAMETERS |
|
Nominal Voltage: 150 V |
|
Nominal Speed: 6000 rpm |
|
Nominal Torque: 40 Nm |
|
Continuous Power: 25000 W |
|
Diameter: 315 mm |
|
Lenght: 376 mm |
25 kW 6000 rpm PMSM Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 25000 |
| Rated Speed | rpm | 6000 |
| Rated Torque | Nm | 40 |
| Rated Current | A | 180 |
| Rated Voltage | V | 150 |
| No-Load Speed | rpm | 7000 |
| Max. Efficiency | % | 95 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 16 | |
| Torque Constant (KT) | Nm/A | 0.215 |
| Back EMF Constant (KE) | Vs/rad | 0.22 |
| Terminal Resistance Phase to Phase | mΩ | 2.75 |
| Terminal Inductance Phase to Phase | mH | Ld: 0.0234 / Lq: 0.0281 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

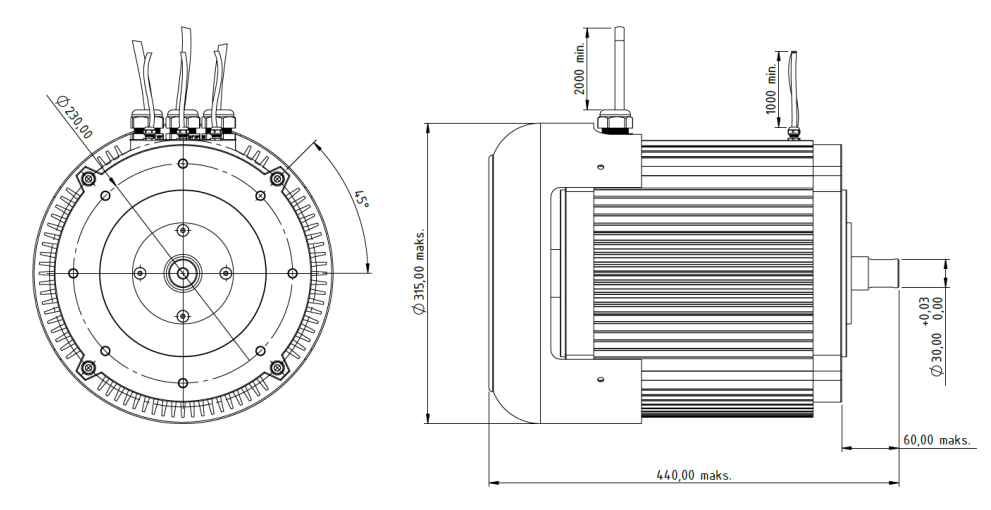

| Physical Parameters | ||
| Outer Diameter | mm | 315 |
| Shaft Diameter | mm | 30 |
| Max. Length | mm | 440 |
| Weight | gr | ~75000 |
| Motor Connection | ||
| U | Phase A | |
| V | Phase B | |
| W | Phase C | |
| Sensor Connection | ||
| U | Hall Sensor A | |
| V | Hall Sensor B | |
| W | Hall Sensor C | |
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
