200 W High-Speed BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 12 V |
|
Nominal Speed: 20000 rpm |
|
Nominal Torque: 0,07 Nm |
|
Continuous Power: 200W |
|
Dimensions: 92mm x 72mm |
|
Lenght: 118 mm |
200W High-Speed BLDC Motor
200 W High-Speed BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 12 V |
|
Nominal Speed: 20000 rpm |
|
Nominal Torque: 0,07 Nm |
|
Continuous Power: 200W |
|
Dimensions: 92mm x 72mm |
|
Lenght: 118 mm |
200 W High-Speed BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 12 V |
|
Nominal Speed: 20000 rpm |
|
Nominal Torque: 0,07 Nm |
|
Continuous Power: 200W |
|
Dimensions: 92mm x 72mm |
|
Lenght: 118 mm |
200 W High-Speed BLDC Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 200 |
| Rated Speed | rpm | 20000 |
| Rated Torque | Nm | 0.07 |
| Rated Current | A | 20 |
| Rated Voltage | V | 12 |
| No-Load Speed | rpm | 22000 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 8 | |
| Torque Constant (KT) | Nm/A | 0.0034 |
| Back EMF Constant (KE) | Vs/rad | 0.0038 |
| Terminal Resistance Phase to Phase (±10%) | mΩ | 10 |
| Terminal Inductance Phase to Phase (±30%) | mH | 7.5 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

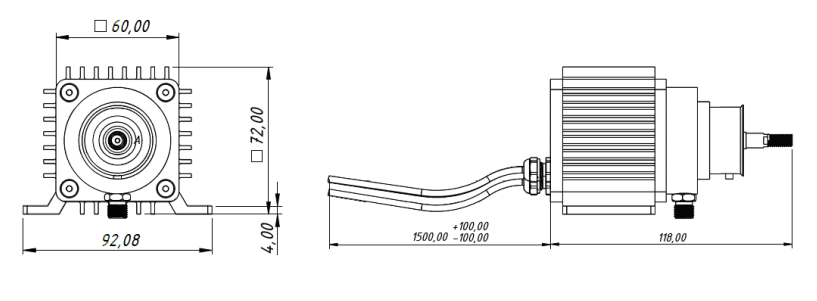

| Physical Parameters | ||
| Outer Diameter | mm | 60x60 (Square) |
| Shaft Diameter | mm | 7 |
| Max. Length | mm | 118 |
| Weight | gr | 750 |
| Motor Connection | ||
| U | Black Cable | |
| V | White Cable | |
| W | Red Cable | |
| Sensor Connection | ||
| N/A | ||
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
