200 W Frameless BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 120 V |
|
Nominal Speed: 6000 rpm |
|
Nominal Torque: 0,33 Nm |
|
Continuous Power: 200 W |
|
Diameter: 37,78 mm |
|
Lenght: 84 mm |
200 W Frameless BLDC Motor
200 W Frameless BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 120 V |
|
Nominal Speed: 6000 rpm |
|
Nominal Torque: 0,33 Nm |
|
Continuous Power: 200 W |
|
Diameter: 37,78 mm |
|
Lenght: 84 mm |
200 W Frameless BLDC Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 120 V |
|
Nominal Speed: 6000 rpm |
|
Nominal Torque: 0,33 Nm |
|
Continuous Power: 200 W |
|
Diameter: 37,78 mm |
|
Lenght: 84 mm |
200 W Frameless BLDC Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 200 |
| Rated Speed | rpm | 6000 |
| Rated Torque | Nm | 0.25 |
| Rated Current | A | 2.2 |
| Rated Voltage | V | 120 |
| No-Load Speed | rpm | 8500 |
| Max. Efficiency | % | ~83 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 8 | |
| Torque Constant (KT) | Nm/A | 0.124 |
| Back EMF Constant (KE) | Vs/rad | 0.13 |
| Terminal Resistance Phase to Phase (±%10) | mΩ | 1.9 |
| Terminal Inductance Phase to Phase (±%30) | mH | 1.4 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

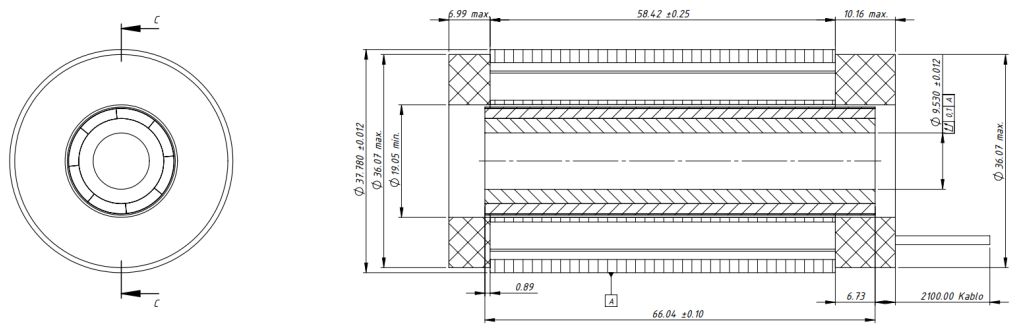

| Physical Parameters | ||
| Outer Diameter | mm | 37.780 |
| Shaft Diameter | mm | N/A |
| Max. Length | mm | 75.57 |
| Weight | gr | 100 |
| Motor Connection | ||
| N/A | ||
| Sensor Connection | ||
| N/A | ||
| Connector Articles | ||
| Power | N/A | |
| Signal | N/A | |
