1.5 kW 48 V High Perf. Servo Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 48 V |
|
Nominal Speed: 11000 rpm |
|
Nominal Torque: 1.25 Nm |
|
Continuous Power: 1500 W |
|
Diameter: 74 mm |
|
Lenght: 140 mm |
1.5 kW 48 V High Perf. Servo Motor
1.5 kW 48 V High Perf. Servo Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 48 V |
|
Nominal Speed: 11000 rpm |
|
Nominal Torque: 1.25 Nm |
|
Continuous Power: 1500 W |
|
Diameter: 74 mm |
|
Lenght: 140 mm |
1.5 kW 48 V High Perf. Servo Motor
Basic Information:
Our BLDC Motor segment offers high power density at low speed and nominal speed operating conditions. Compact structure and high efficiency specifications of high-performance brushless motors provide a wide range of applications in defense, aerospace, medical and robotics industries.
|
PARAMETERS |
|
Nominal Voltage: 48 V |
|
Nominal Speed: 11000 rpm |
|
Nominal Torque: 1.25 Nm |
|
Continuous Power: 1500 W |
|
Diameter: 74 mm |
|
Lenght: 140 mm |
1500W 48V DC 11000 RPM PMSM Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 1500 |
| Rated Speed | rpm | 11000 |
| Rated Torque | Nm | 1.25 |
| Rated Current | A | 35 |
| Rated Voltage | V | 48 |
| No-Load Speed | rpm | 12000 |
| Max. Efficiency | % | 90 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 4 | |
| Torque Constant (KT) | Nm/A | 0.175 |
| Back EMF Constant (KE) | Vs/rad | 0.180 |
| Terminal Resistance Phase to Phase (±%10) | mΩ | 25 |
| Terminal Inductance Phase to Phase (±%30) | mH | 60 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

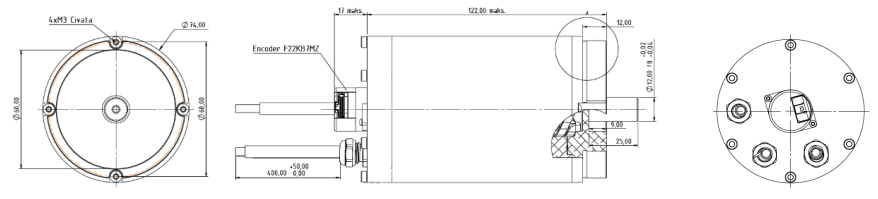

| Physical Parameters | ||
| Outer Diameter | mm | 74 |
| Shaft Diameter | mm | 12 |
| Max. Length | mm | 167 |
| Weight | gr | ~1300 |
| Motor Connection | ||
| U | RED CABLE | |
| V | WHITE CABLE | |
| W | BLACK CABLE | |
| Sensor Connection | ||
| 1 | GND | |
| 2 | VDC + | |
| 3 | Z′ | |
| 4 | Z | |
| 5 | B | |
| 6 | B′ | |
| 7 | A′ | |
| 8 | A | |
| 9 | HALL A | |
| 10 | HALL B | |
| 11 | HALL C | |
| Connector Articles | ||
| Power | M10 CABLE GLAND | |
| Signal | Molex 501330-1100 | |
