150W Outrunner BLDC Motor
Basic Information:
Our BLDC motor is a compact, efficient, and maintenance-friendly solution designed for direct drive applications. Its high torque density and precise control capabilities make it ideal for use in mobile robotics, automated material handling, medical devices, and industrial automation systems. Thanks to its brushless design, it ensures quiet operation, long service life, and excellent energy efficiency.
|
PARAMETERS |
|
Nominal Voltage: 14,4 V |
|
Nominal Speed: 2600 rpm |
|
Nominal Torque: 0,55 Nm |
|
Continuous Power: 150W |
|
Diameter: 50,2 mm |
|
Lenght: 80,7 mm |
150W Outrunner BLDC Motor
150W Outrunner BLDC Motor
Basic Information:
Our BLDC motor is a compact, efficient, and maintenance-friendly solution designed for direct drive applications. Its high torque density and precise control capabilities make it ideal for use in mobile robotics, automated material handling, medical devices, and industrial automation systems. Thanks to its brushless design, it ensures quiet operation, long service life, and excellent energy efficiency.
|
PARAMETERS |
|
Nominal Voltage: 14,4 V |
|
Nominal Speed: 2600 rpm |
|
Nominal Torque: 0,55 Nm |
|
Continuous Power: 150W |
|
Diameter: 50,2 mm |
|
Lenght: 80,7 mm |
150W Outrunner BLDC Motor
Basic Information:
Our BLDC motor is a compact, efficient, and maintenance-friendly solution designed for direct drive applications. Its high torque density and precise control capabilities make it ideal for use in mobile robotics, automated material handling, medical devices, and industrial automation systems. Thanks to its brushless design, it ensures quiet operation, long service life, and excellent energy efficiency.
|
PARAMETERS |
|
Nominal Voltage: 14,4 V |
|
Nominal Speed: 2600 rpm |
|
Nominal Torque: 0,55 Nm |
|
Continuous Power: 150W |
|
Diameter: 50,2 mm |
|
Lenght: 80,7 mm |
150W Outrunner BLDC Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 150 |
| Rated Speed | rpm | 2600 |
| Rated Torque | Nm | 0.55 |
| Rated Current | A | 12 |
| Rated Voltage | V | 14.4 |
| No-Load Speed | rpm | 3200 |
| Max. Efficiency | % | 94 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 14 | |
| Torque Constant (KT) | Nm/A | 0.046 |
| Back EMF Constant (KE) | Vs/rad | 0.046 |
| Terminal Resistance Phase to Phase (±10%) | mΩ | 65 |
| Terminal Inductance Phase to Phase (±30%) | mH | 80 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

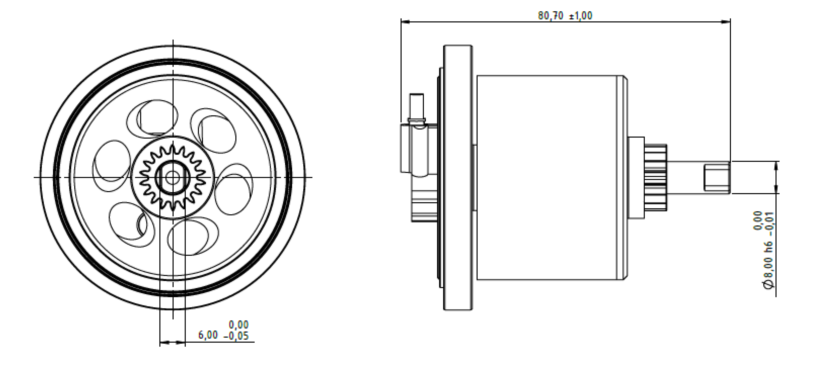

| Physical Parameters | ||
| Outer Diameter | mm | 50.2 |
| Shaft Diameter | mm | 8 |
| Max. Length | mm | 81 |
| Weight | gr | ~175 |
| Motor Connection | ||
| U | Left Pin | |
| V | Middle Pin | |
| W | Right Pin | |
| Sensor Connection | ||
| N/A | ||
| Connector Articles | ||
| Power | Amass MR30 | |
| Signal | N/A | |
