10 W Gearbox Integrated Motor
Basic Information:
Our geared satellite motors offer compact and high-torque solutions designed for the precise positioning of satellite wings and steering systems. With a brushless design that ensures long service life and minimal maintenance, these motors deliver stable and controlled motion even at low speeds thanks to their integrated gearbox. They are ideal for applications such as solar array positioning, antenna steering, and similar space missions requiring high reliability.
|
PARAMETERS |
|
Nominal Voltage: 12 V DC |
|
Nominal Speed: 3100 rpm |
|
Nominal Torque: 0.030 Nm |
|
Continuous Power: 10 W |
|
Diameter: 32mm |
|
Lenght: 111 mm |
10 W Gearbox
10 W Gearbox Integrated Motor
Basic Information:
Our geared satellite motors offer compact and high-torque solutions designed for the precise positioning of satellite wings and steering systems. With a brushless design that ensures long service life and minimal maintenance, these motors deliver stable and controlled motion even at low speeds thanks to their integrated gearbox. They are ideal for applications such as solar array positioning, antenna steering, and similar space missions requiring high reliability.
|
PARAMETERS |
|
Nominal Voltage: 12 V DC |
|
Nominal Speed: 3100 rpm |
|
Nominal Torque: 0.030 Nm |
|
Continuous Power: 10 W |
|
Diameter: 32mm |
|
Lenght: 111 mm |
10 W Gearbox Integrated Motor
Basic Information:
Our geared satellite motors offer compact and high-torque solutions designed for the precise positioning of satellite wings and steering systems. With a brushless design that ensures long service life and minimal maintenance, these motors deliver stable and controlled motion even at low speeds thanks to their integrated gearbox. They are ideal for applications such as solar array positioning, antenna steering, and similar space missions requiring high reliability.
|
PARAMETERS |
|
Nominal Voltage: 12 V DC |
|
Nominal Speed: 3100 rpm |
|
Nominal Torque: 0.030 Nm |
|
Continuous Power: 10 W |
|
Diameter: 32mm |
|
Lenght: 111 mm |
10 W Gearbox Integrated Motor
| Basic Motor Parameters | ||
|---|---|---|
| Rated Power | W | 10 |
| Rated Speed | rpm | 3100 |
| Rated Torque | Nm | 0.030 |
| Rated Current | A | 1.1 |
| Rated Voltage | V | 12 |
| No-Load Speed | rpm | 3600 |
| Max. Efficiency | % | 80 |
| Electrical Parameters | ||
| Number of Phases | 3 | |
| Number of Poles | 6 | |
| Torque Constant (KT) | Nm/A | 0.029 |
| Back EMF Constant (KE) | Vs/rad | 0.032 |
| Terminal Resistance Phase to Phase (±%10) | mΩ | 1.2 |
| Terminal Inductance Phase to Phase (±%30) | mH | 0.80 |
| Thermal Data | ||
| Ambient Temperature | °C | -40...+85 |
| Max. Winding Temperature | °C | +155 |

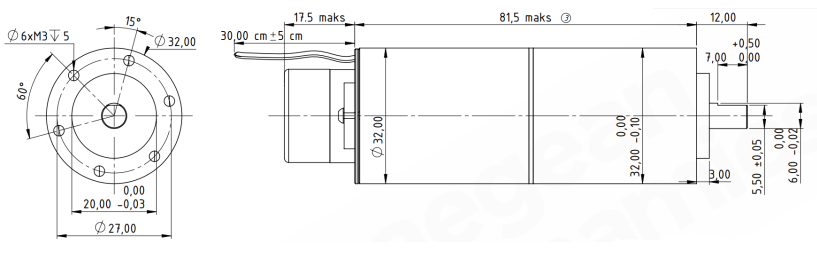

| Physical Parameters | ||
| Outer Diameter | mm | 32 |
| Shaft Diameter | mm | 6 |
| Max. Length | mm | ~111 |
| Weight | gr | ~377 |
| Motor Connection | ||
| U | RED CABLE | |
| V | WHITE CABLE | |
| W | BLACK CABLE | |
| Sensor Connection | ||
| 1 | VDC+ | |
| 2 | GND | |
| 8 | CLK− | |
| 9 | CLK+ | |
| 10 | DATA− | |
| 11 | DATA+ | |
| Connector Articles | ||
| Power | 0.24MM² cable | |
| Signal | Molex 501330-1100 | |
